19.5 Inch Stretched Bar LCD Display, Ultra Wide Shelf Edge Long Strip Digital Signage for Retail Advertising
GoXmart Special Shaped LCD Monitor & Digital Signage Solutions
GoXmart 19.5inch Stretched Bar LCD Display 1920*540 – Manufactured by Shenzhen GoXmart, China Leading Special Shaped LCD Monitor Factory, High-Quality Digital Signage Manufacturer with Cheap Price & OEM/ODM Service.
Our core products include round circular LCD monitors, stretched bar displays, square LCD monitors, and custom-shaped digital signage, all built with industrial-grade components to ensure durability and stable performance for 24/7/365 operation indoors.
19.5 Inch Ultra Wide Stretched Bar LCD | Custom Long Strip Digital Signage for Narrow Spaces

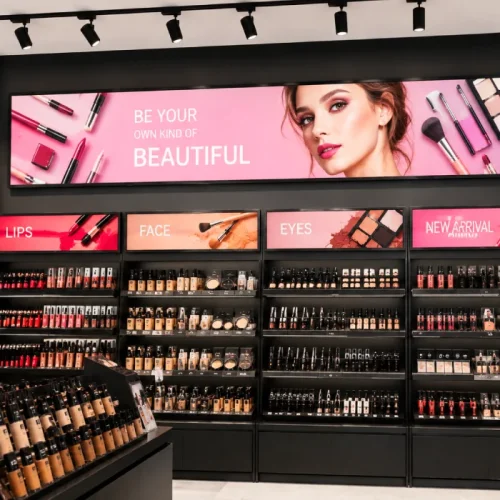

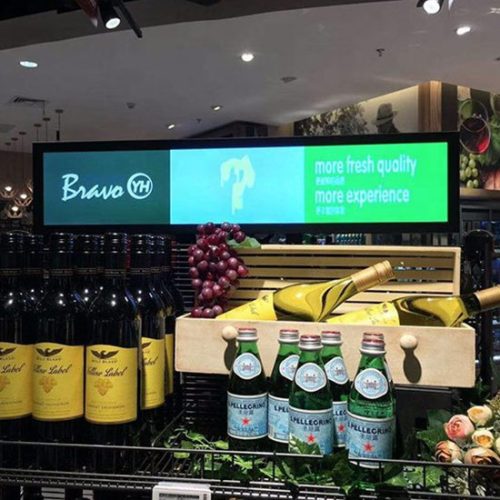

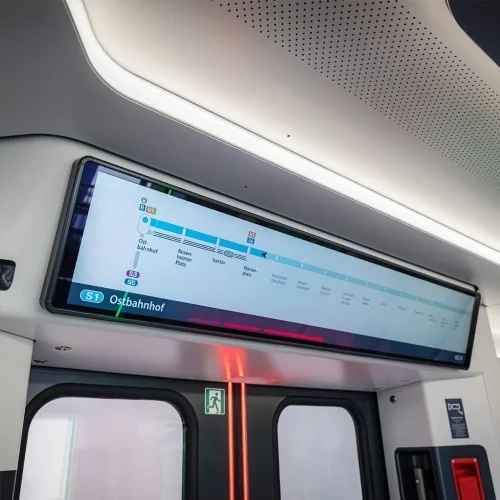

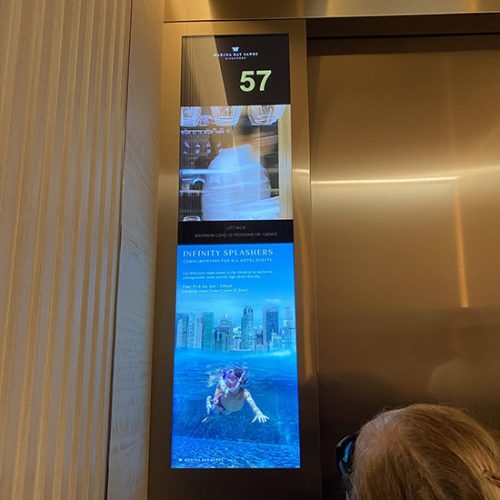

GoXmart 19.5″ stretched bar digital signage is designed for slim installation areas. It is commonly applied to retail shelf label advertising, convenience store promotional screens, elevator media displays, public transport information panels, catering menu boards and industrial equipment status monitors.
Multiple configurable choices are offered for your project: flexible OS selections including Windows, Android and standalone playback mode. The panel supports brightness levels reaching 1500 nits, with optional 10-point touch solutions (capacitive or infrared touch). It also comes with abundant connectivity options like HDMI input, USB and LAN ports.

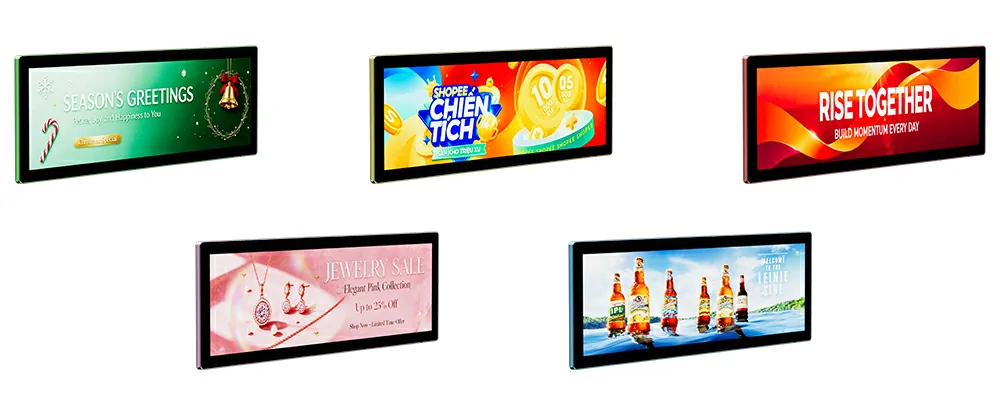

Custom functions are available to meet your specific requirements: logo printing, custom case colors, and built-in camera. As a professional display manufacturer based in China, GoXmart provides cost-effective and reliable display solutions for global customers.
| 19.5inch Stretched Bar LCD Display | |
| Display area | 476.60*134mm |
| Resolution | 1920*540 |
| Brightness | 250 nits |
| View Angle | 178/178 |
| Working life | 50000Hrs |
| Working time support | 7*24Hrs |
| Display mode | Horizontal and vertical |
| Speaker | 10W waterproof speaker |
| Spec | RK3568 with CMS, 4+32 GB |
| Interface | HDMI IN*1, RJ45*1, USB*3 |
| Shell | body metal cold-rolled steel plate spraying, edge strip aluminum alloy profile |
| Glass | 4mm tempered glass |
| Color | Black(optional) |
| Product body size | 521.5*179.5*47.6mm |
| Product weight | 3 KG |
| Package Size | 620*110*280 mm |
| Full package weight | 5 kg |
| Working temperature | -20-55°C |
| Operating humidity | 5%-95% |
| Input voltage | DC 12V / AC 90-240V |

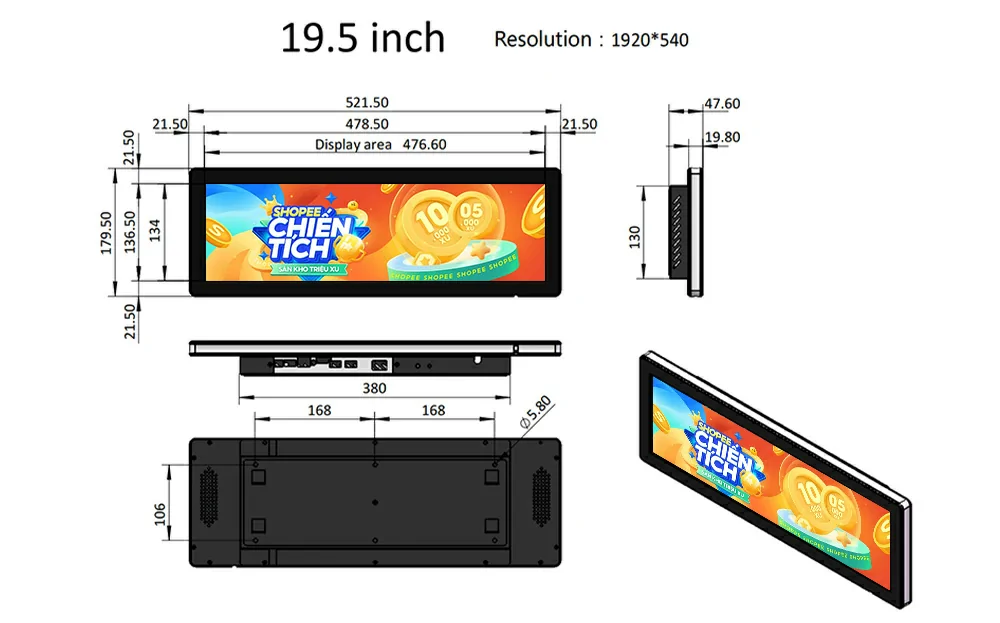

19.5 Inch Stretched Bar LCD Display Dimension Drawing
GoXmart Stretched LCD Display Production Line
GoXmart operates a high-precision production line dedicated to stretched bar LCD displays. Our modern workshop covers custom glass cutting, COG/FOG bonding and fully automatic AOI optical inspection processes to manufacture premium long-strip display panels.
We focus on custom stretched LCD screens with flexible size options to match diverse project requirements. These displays deliver outstanding precision, even backlight brightness and polished edge treatment. Every unit goes through 100% function check, color tuning and extended aging testing to guarantee stable, long-term operation.
Our production line supports mass customization and scalable monthly capacity. We supply reliable stretched digital signage solutions for worldwide customers across retail, hospitality, shopping malls and many other industries.

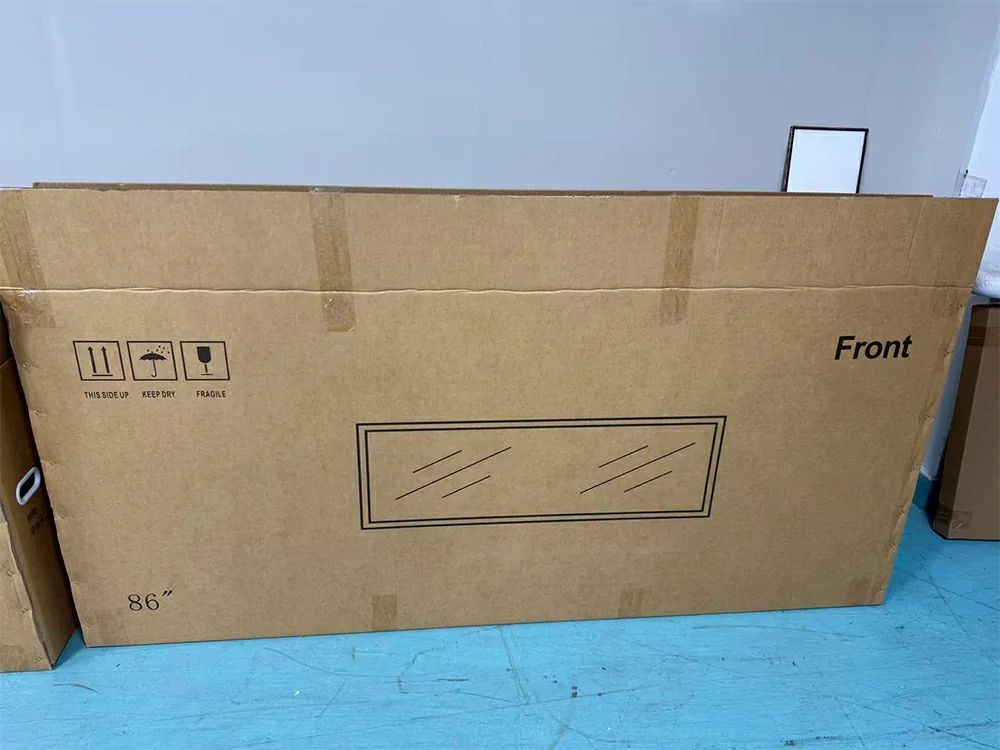

Packaging & Shipping
We provide complete after-sales service for our stretched LCD displays, including free round-the-clock online technical support and a 1-year warranty. Our team delivers rapid fault diagnosis, professional maintenance instructions and dependable long-term technical guidance without extra charges. This safeguards continuous, stable running of your screens and guarantees a smooth user experience.
Our Certifications
GoXmart strictly adheres to international quality and safety standards, with all our display products fully certified for global market access. Our core certifications include CE, FCC, RoHS, CCC, ISO 9001 and more, covering safety, electromagnetic compatibility, environmental protection and performance reliability.
Each product undergoes rigorous laboratory testing and quality verification to ensure compliance with regional regulations worldwide, delivering secure, stable and legally qualified display solutions for global partners.
About GoXmart
GoXmart designs and manufactures creative special-shaped digital signage and customized LCD display solutions for commercial applications worldwide.
We specialize in stretched displays, round LCD displays and customized digital signage solutions for retail, transportation, hospitality, healthcare and industrial applications.
