23.6inch Round Capacitive Touch LCD Monitor Circular Digital Signage Display
Detail
23.6inch Circular Touch Monitor 1280*1280 Round LCD Digital Signage for Commercial Use
GoXmart Special Shaped LCD Monitor & Digital Signage Solutions
GoXmart 23.6inch Round Circular LCD Touch Screen 1280*1280 – Manufactured by Shenzhen GoXmart, China Leading Special Shaped LCD Monitor Factory, High-Quality Digital Signage Manufacturer with Cheap Price & OEM/ODM Service.
Our core products include round circular LCD monitors, stretch bar displays, square LCD monitors, and custom-shaped digital signage, all built with industrial-grade components to ensure durability and stable performance for 24/7/365 operation indoors.
23.6 Inch Round LCD Touch Screen Digital Signage | Multi-Functional & Customizable High Performance Display
The GoXmart 23.6-inch circular LCD display is widely used in various commercial scenarios, including casino gaming machines, interactive game devices, shopping mall brand displays, retail promotions, hotel information terminals, and office interactive screens.
A variety of practical options are available: operating systems (Windows / Android / Stand-alone), screen brightness up to 700 nits, 10-point touch screen (capacitive touch / infrared touch), and rich interfaces such as HDMI input, USB and LAN ports.

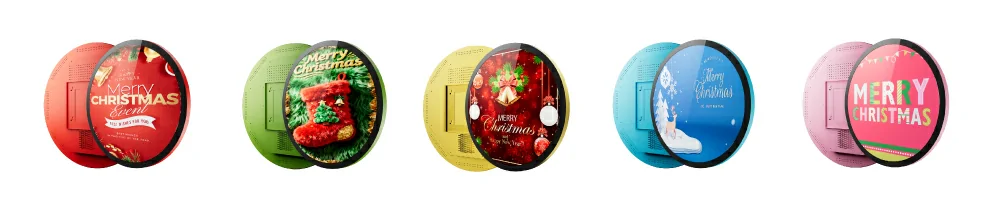

Custom functions are available to meet your specific requirements: logo printing, custom case colors, and built-in camera. As a professional display manufacturer based in China, GoXmart provides cost-effective and reliable display solutions for global customers.
| 23.6inch Digital Circular Touch Screen | |
| Display area | 600*600mm |
| Resolution | 1280*1280 |
| Brightness | 700 nits |
| View Angle | 178/178 |
| Working life | 50000Hrs |
| Working time support | 7*24Hrs |
| Display mode | Wall mounted / Embedded mounted |
| Speaker | 10W waterproof speaker |
| Operating system | Windows / Android / Stand-alone |
| Audio | MP3, WAV, APE, FLAC, OGG, M4A, 3GPP and other formats |
| Video | Support H.265, H.264, VP9, AVS2, AV1 and other video formats |
| Image | Support various image formats such as JPG, BMP, PNG, etc. |
| System comes with application software | APK Installer, Email, Calculator, Browser, Recorder, Calendar, Settings, Clock, Video Player, Search, Contacts, Gallery, Download, Camera, Music, Explorer, etc. |
| Language | Support multiple languages |
| Input | Standard Android keyboard, optional third-party input method |
| System Management | Native Android system, open root permissions, and can be used for product customization and development Support OTA remote upgrade; support USB flash drive upgrade Support boot animation definition Support server/stand-alone mode switching Support Wi-Fi hotspot |
| Shell | Body metal cold-rolled steel plate spraying, edge strip aluminum alloy profile |
| Glass | 4mm tempered glass |
| Color | Black(Custom) |
| Product body size | 657*657*45.8mm |
| Product weight | / |
| Package Size | 830*850*140MM |
| Full package weight | 10 kg |
| Working temperature | -20~55°C |
| Operating humidity | 5%-95% |
| Input voltage | DC 12V / AC 90-240V |

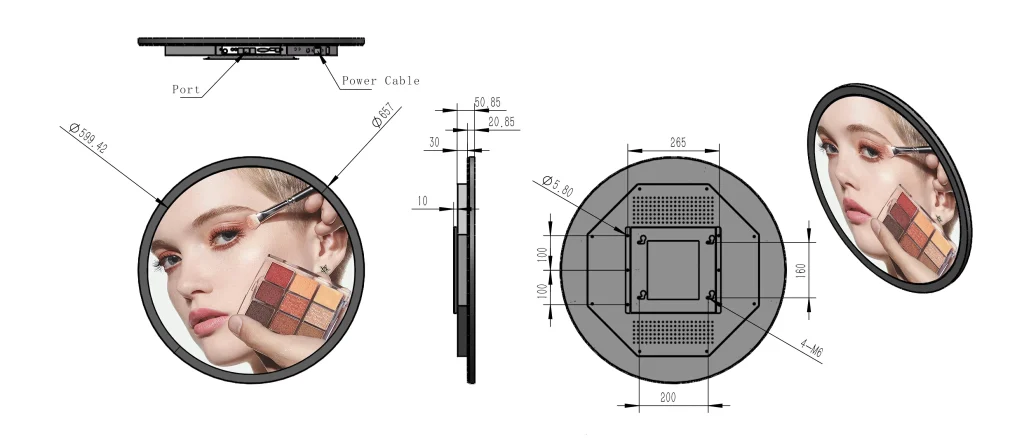

23.6" Round LCD Display Dimension Drawing
GoXmart Round LCD Display Production Line
GoXmart runs a high-precision LCD display production line. Our advanced workshop integrates custom glass cutting, COG/FOG bonding, and fully automatic Optical Inspection (AOI) processes, to deliver premium circular display panels.
We specialize in circular and ring displays with sizes ranging from 15.7 inches to 23.6 inches. These displays feature ultra-high precision, uniform backlight performance, and seamless edge finishing. Every single product undergoes 100% functional testing, color calibration, and long-term aging testing, to ensure long-lasting reliability and stability.
This professional production line supports large-scale customization and scalable monthly output. We provide high-quality ring display solutions for global clients in retail, hospitality, shopping mall, digital signage and other industries worldwide.

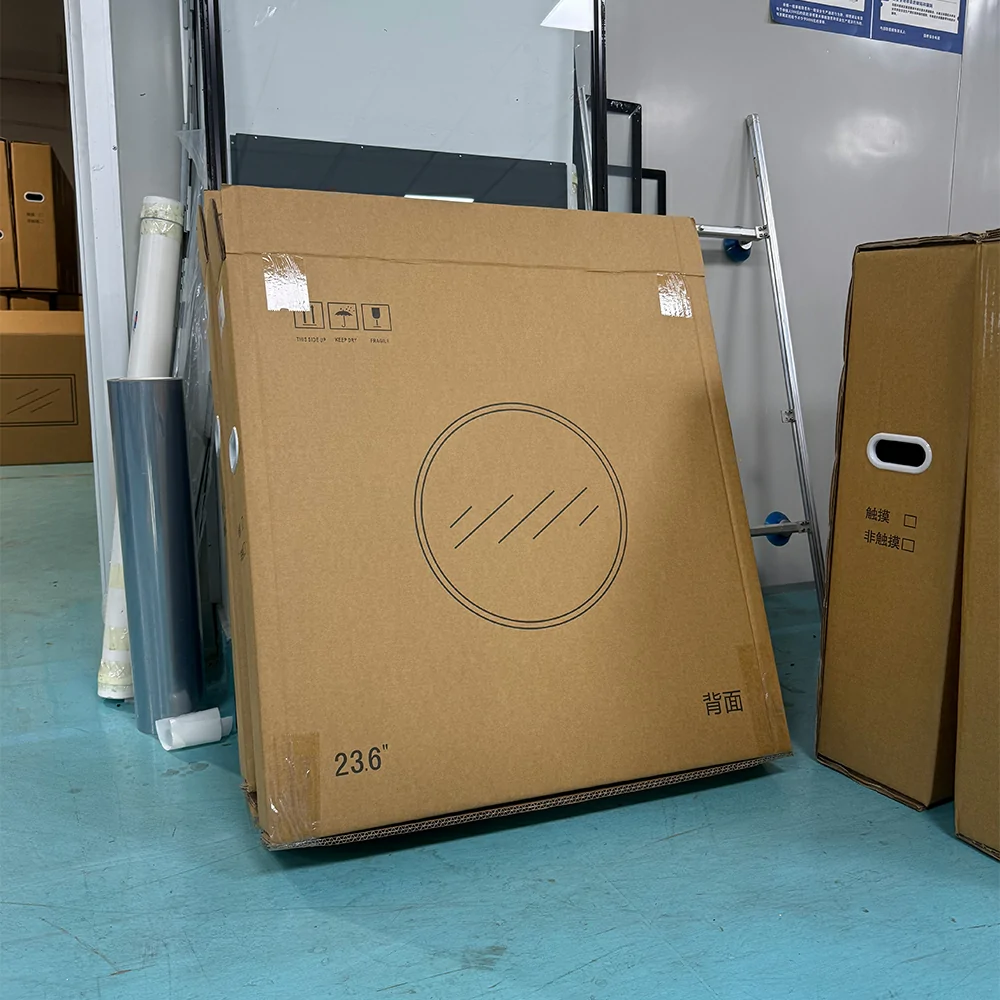

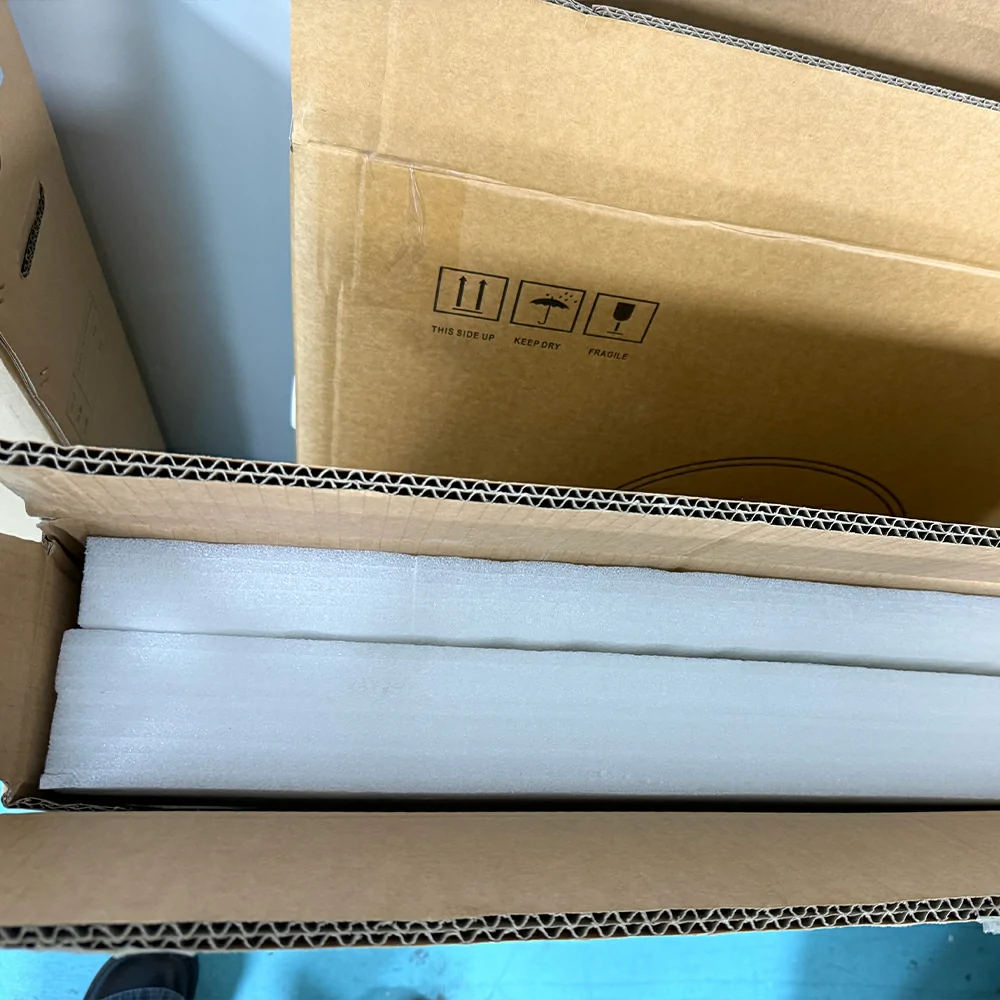

Packaging & Shipping
Comprehensive after-sales support is available, featuring24/7 online technical assistance for free in the long term and a one-year warranty. We are committed to providing timely troubleshooting, professional maintenance guidance, and reliable technical support at no extra cost for the long run, ensuring stable and uninterrupted operation of your equipment and a seamless user experience.
Our Certifications
GoXmart strictly adheres to international quality and safety standards, with all our display products fully certified for global market access. Our core certifications include CE, FCC, RoHS, CCC, ISO 9001 and more, covering safety, electromagnetic compatibility, environmental protection and performance reliability.
Each product undergoes rigorous laboratory testing and quality verification to ensure compliance with regional regulations worldwide, delivering secure, stable and legally qualified display solutions for global partners.
Frequently Asked Questions
We currently offer standard circular displays in:
- 15.7 inch circular display
- 23.6 inch circular display
The 23.6 inch model is available with different LCD panel options, including a premium BOE panel and a standard AUO panel, allowing customers to choose between higher image quality and cost efficiency.
The 15.7 inch circular display features:
- Body size: 476 × 476 × 61 mm
- Display area: 400 × 400 mm
- Resolution: 960 × 960 pixels
- Brightness: 700 cd/m²
It is suitable for retail displays, product showcases, exhibitions, and compact digital signage applications.
Our 23.6 inch circular display is available in two LCD panel versions:
Premium Version – BOE Panel
- Body size: 657 × 657 × 50.85 mm
- Display area: 42 × 590.42 mm
- Resolution: 1280 × 1280 pixels
- Brightness: 700 cd/m²
The BOE version provides higher resolution and better image detail, making it suitable for premium retail, luxury brand displays, exhibitions, and experience centers.
Standard Version – AUO Panel
- Body size: 604 × 604 × 50.85 mm
- Display area: 38 × 600.38 mm
- Resolution: 848 × 848 pixels
- Brightness: 700 cd/m²
The AUO version provides a more economical solution while maintaining excellent visibility for commercial digital signage applications.
The two versions use different LCD panels and are designed for different project requirements.
BOE Premium Version
- Higher resolution
- Better image details
- Recommended for close viewing distance
- Suitable for premium applications
AUO Standard Version
- Cost-effective solution
- Suitable for general advertising and information display
- Recommended for projects with budget considerations
We can recommend the most suitable version based on your application and viewing distance.
Yes.
Our circular displays support commercial multimedia playback, including:
- Android built-in media player
- USB video and image playback
- WiFi content updates
- HDMI external input
Customers can easily display videos, advertisements, product introductions, and promotional content.
The circular display can be equipped with an Android media player solution:
- Rockchip RK3576 processor
- 4GB RAM
- 32GB storage
- WiFi support
- USB playback
- HDMI input
This configuration provides smooth operation for digital signage applications.
All standard circular display models support:
700 cd/m² high brightness
This provides clear visibility in environments such as:
- Retail stores
- Showrooms
- Exhibition halls
- Shopping malls
- Brand experience centers
For stronger sunlight environments, we can evaluate customized high brightness solutions.
Yes.
We provide customized circular display solutions including:
- Custom mechanical structure
- Different installation methods
- Touch screen integration
- Customized housing
- Logo customization
- Special application designs
Please share your project requirements for evaluation.
Yes.

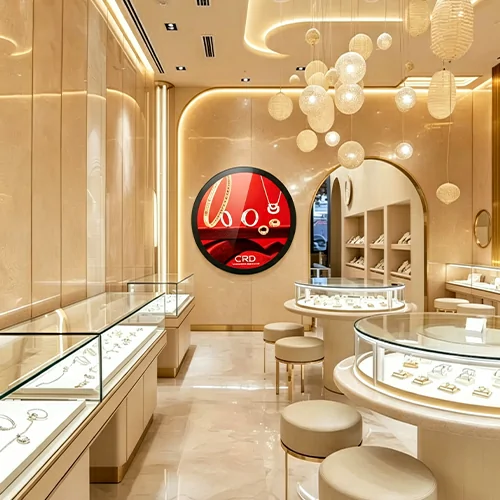

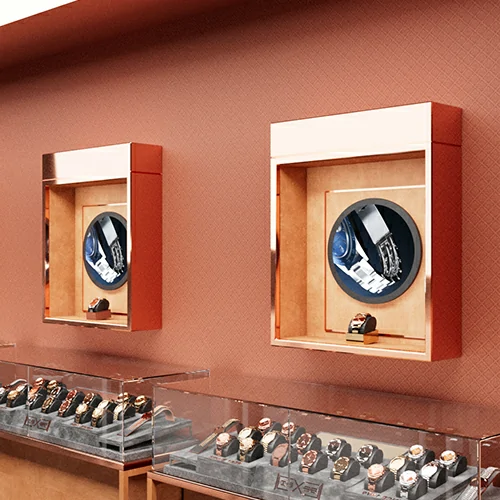

The unique round design makes it ideal for creative installations:
- Wine wall displays
- Cosmetic showcases
- Jewelry displays
- Retail shelves
- Exhibition structures
- Brand experience installations
We can supply the display module for customers who design their own enclosure.
The standard circular display is designed for indoor commercial applications.
For outdoor or semi-outdoor environments, customized solutions may include:
- Higher brightness LCD
- Waterproof enclosure
- IP-rated protection
Thermal management system
We support:
- Sample orders for testing and demonstration
- Small quantity orders for project evaluation
- Bulk production orders
Please contact us with your required quantity and application.
Typical lead time:
- Standard models: approximately 10 working days
- Customized projects: approximately 20–30 working days
Lead time may vary depending on quantity and customization requirements.
We provide:
- 1-year warranty after delivery
- Lifetime technical support
Each circular display is tested before shipment, including LCD aging test and full functional inspection.
Yes. The Android version of our circular display comes with a free cloud-based CMS (Content Management System), allowing users to easily manage and update display content remotely.
The CMS supports:
- Playlist editing and scheduled playback
- Multi-zone content management
- Remote content updates through WiFi/LAN network
- Mobile and PC remote management
Cloud-based device management
Our CMS provides professional digital signage management functions, including:
Playlist & Scheduling
Users can:
- Create and edit playlists
- Set playback schedules
Automatically update content based on time settings
Multi-Zone Display Management
The software supports multiple content zones on one screen.
Users can display different content simultaneously, such as:
- Videos
- Images
- Text
Web content
Multi-Screen Splicing Without Additional Hardware
The CMS supports video wall splicing through software.
Multiple screens can combine into one large image/video display without requiring:
- External controller
- Matrix
- HDMI splitter
This simplifies installation and reduces system cost.
Remote Management
Users can manage displays remotely through:
- PC software
- Mobile devices
- WiFi/LAN network
This is ideal for customers managing multiple displays across different locations.
Online Content & Live Streaming Support
The CMS supports:
- Live streaming
- URL playback
Online content sources
High Resolution Video Playback
The system supports:
- Up to 4K video playback
- Large file uploading (maximum 20GB)
Suitable for high-quality advertising and brand presentation.
USB Plug & Play Playback
For simple applications, users can also:
- Copy videos/images to a USB drive
- Insert the USB drive into the display
- Automatically play content in loop mode
No network connection is required.
No.
The Android version integrates the media player and CMS solution inside the display.
Customers do not need additional:
- External player
- HDMI splitter
- Matrix controller
The all-in-one design makes installation easier and reduces overall system cost.
Yes.
With the cloud-based CMS, multiple displays can be managed remotely from one platform.
This is suitable for:
- Retail chains
- Brand stores
- Exhibition projects
- Multi-location advertising networks
√ Free Cloud CMS
√ Remote Management
√ Playlist Scheduling
√ Multi-zone Display
√ 4K Video Playback
√ USB Plug & Play
