37 Inch Stretched Bar LCD Display
Detail
37 Inch Stretched LCD Display for Custom Applications
A space-efficient ultra-wide LCD display designed for commercial signage, equipment integration, and customized display projects.
Custom Display Dimensions
Flexible Installation Options
OEM & ODM Support
A Compact Stretched Display Built Around Your Project
The GoXmart 37 inch stretched LCD display is designed for applications that require a wide viewing area within a limited installation space. Its elongated screen format provides an alternative to conventional displays for commercial signage, equipment integration, and customized information systems.
We support project-based customization to help match the display dimensions, brightness, interface, and mounting structure to your specific requirements.
Whether you are developing a new device or upgrading an existing display system, our team can help you evaluate a suitable stretched LCD solution.

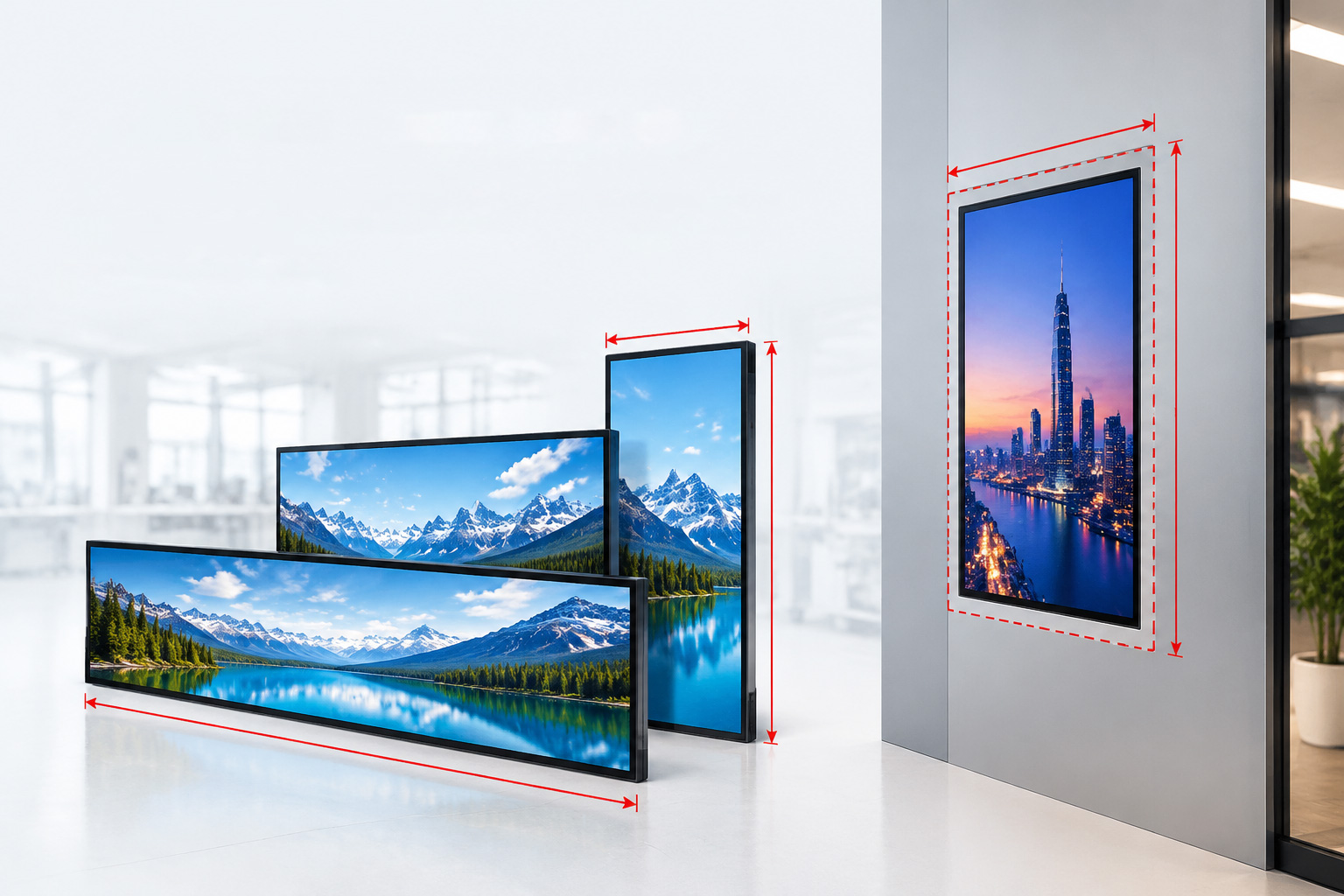

Custom Dimensions
Configure display dimensions to suit your enclosure, equipment layout, or installation space, subject to technical feasibility.

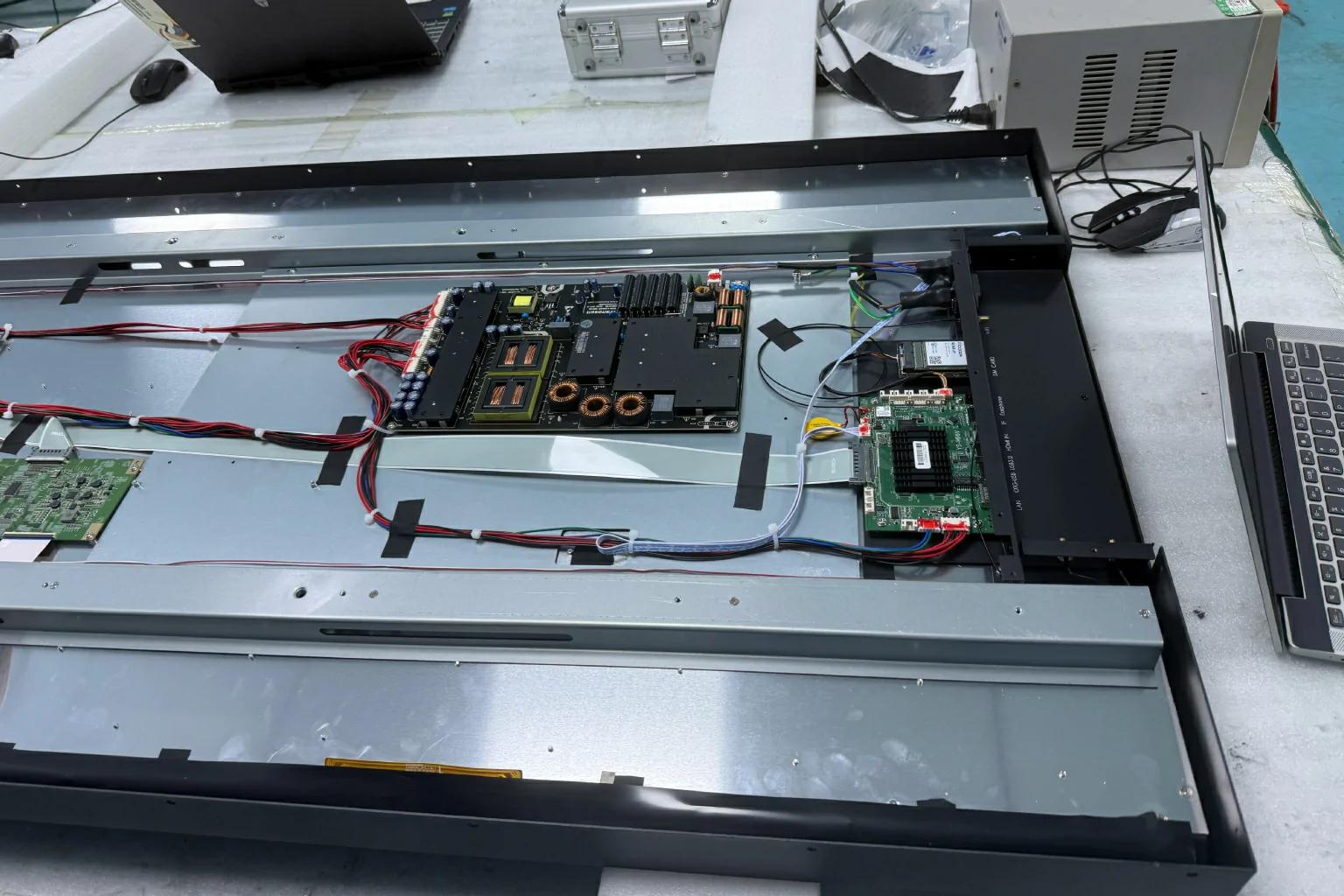

Flexible Interface Options
Discuss signal interfaces and control-board compatibility according to your system architecture and project requirements.

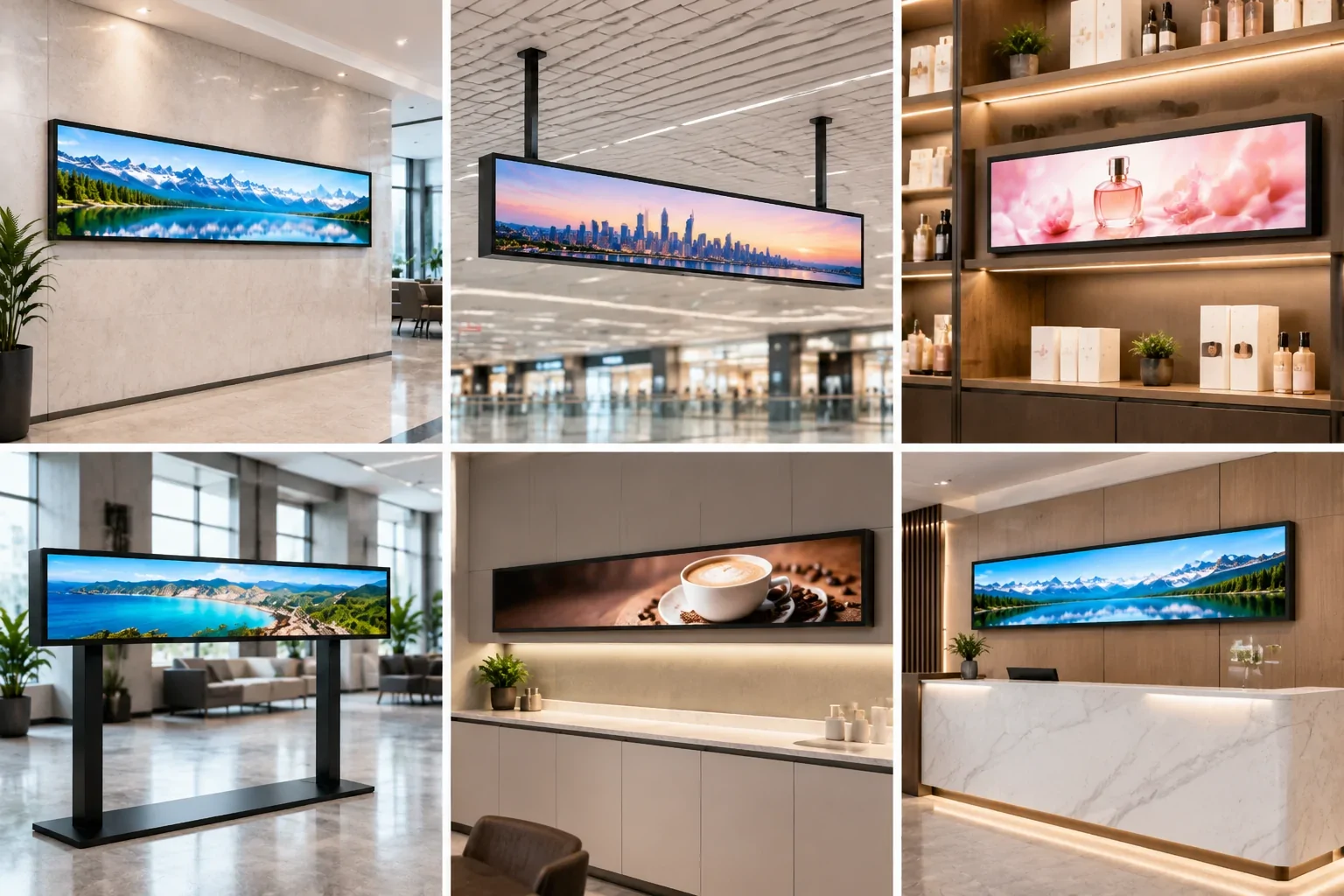

Installation Adaptability
Explore suitable mounting structures, housings, and integration options for your application.
Applications of 37 Inch Stretched LCD Displays

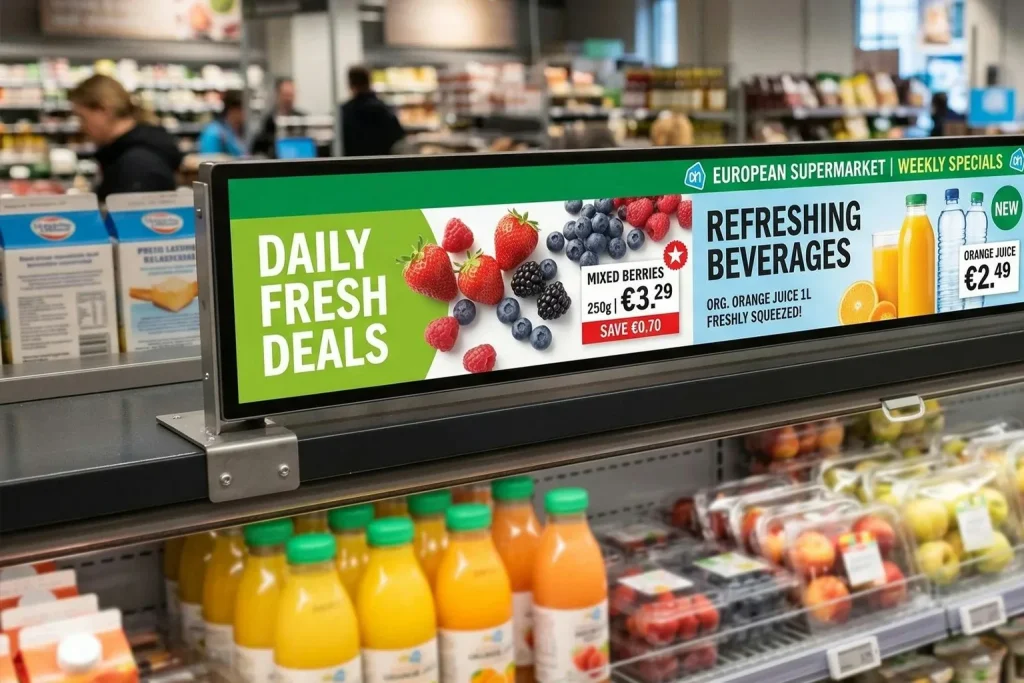

Retail Display Systems
Product promotions, shelf displays, and branded retail environments.

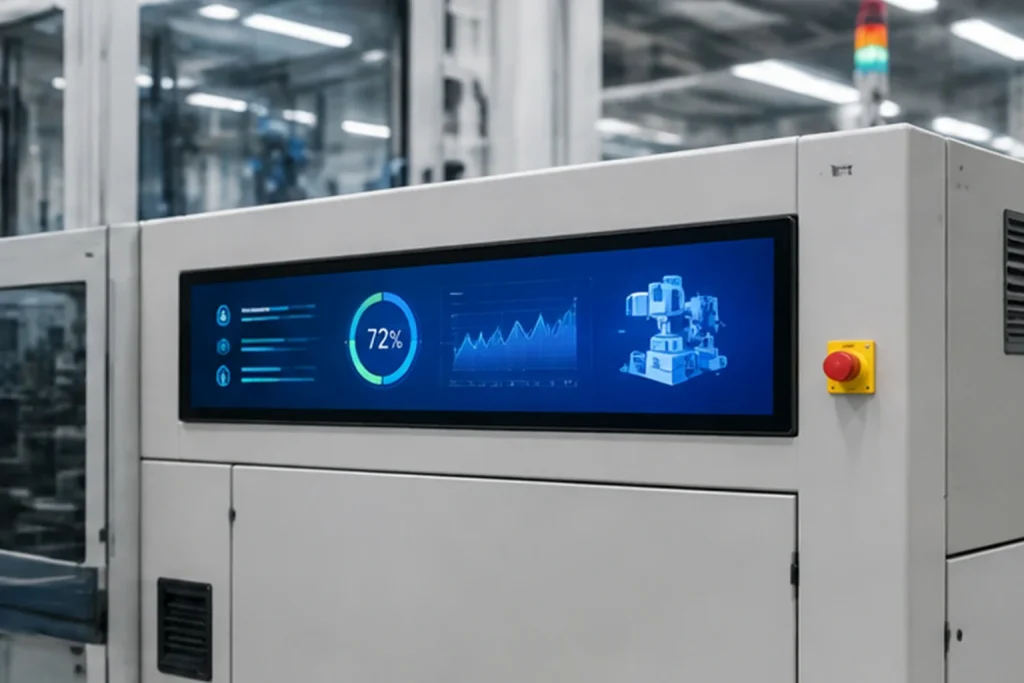

Industrial Equipment
Equipment status, operating information, and machine interfaces.

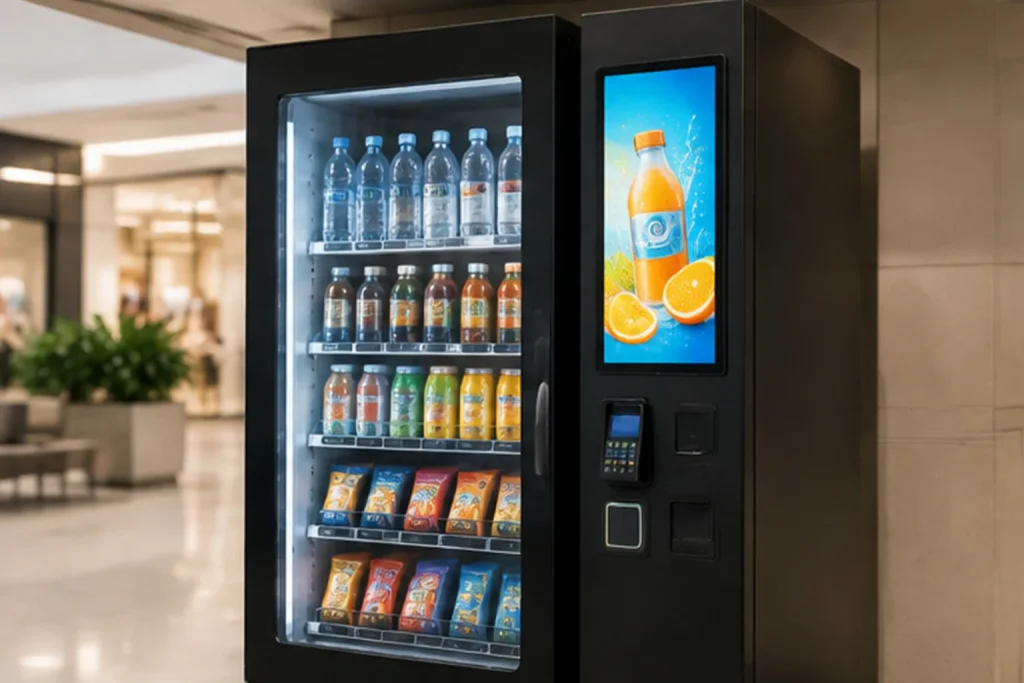

Smart Commercial Devices
Customized display integration for vending machines and self-service terminals.

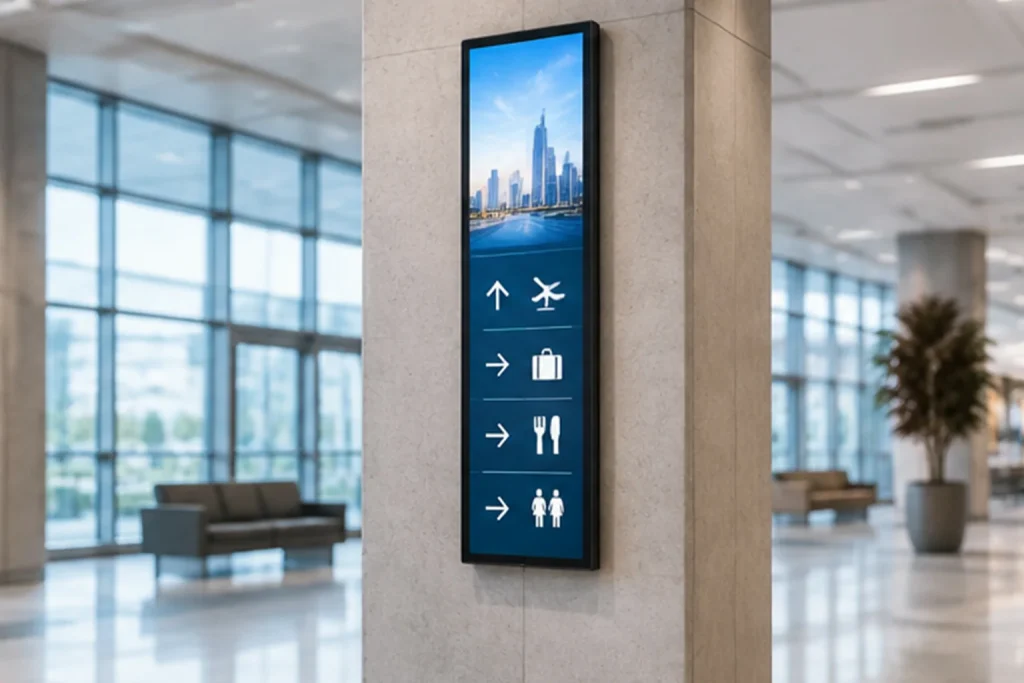

Information Displays
Directional information and announcements in commercial spaces.
| 37 Inch Stretched LCD Display | |
| Display area | 904*254mm |
| Resolution | 1920*540 |
| Aspect ratio | 9:4 |
| Support Colors | 16.7M |
| Brightness | 250 nits |
| Response time | <5ms |
| View Angle | 178/178 |
| Working life | 50000Hrs |
| Working time support | 7*24Hrs |
| Display mode | Horizontal and vertical |
| Speaker | 2*5W (8Ω) |
| Processor | RK3576 (2.2 GHz, octa-core) |
| RAM | 4GB |
| Flash | 32GB |
| Interface | 1*LVDS, support 1920*1080@60Hz; |
| Operating system | Android 14.0 |
| Audio | MP3, WAV, APE, FLAC, OGG, M4A, 3GPP and other formats |
| Video | Support H.265, H.264, VP9, AVS2, AV1 and other video formats |
| Image | Support various image formats such as JPG, BMP, PNG, etc. |
| System comes with application software | APK Installer, Email, Calculator, Browser, Recorder, Calendar, Settings, Clock, Video Player, Search, Contacts, Gallery, Download, Camera, Music, Explorer, etc. |
| Language | Support multiple languages |
| Input | Standard Android keyboard, optional third-party input method |
| System Management | Native Android system, open root permissions, and can be used for product customization and development Real-time remote monitoring, self-recovery in case of system crash, 24/7 unattended operation Support OTA remote upgrade; support USB flash drive upgrade Support boot animation definition Support server/stand-alone mode switching Support Wi-Fi hotspot |
| Shell | body metal cold-rolled steel plate spraying, edge strip aluminum alloy profile |
| Glass | 4mm tempered glass(optional) |
| Color | Black(optional) |
| Product body size | 932*282*46mm |
| Product weight | 8 KG |
| Package Size | 1050*106*330mm |
| Full package weight | 12 kg |
| Working temperature | -20~55°C |
| Operating humidity | <85% |
| Storage temperature | -20℃～60℃ |
| Operating voltage | AC 100V-260V 50Hz/60Hz |
Customize Your 37 Inch Stretched LCD Display
Every project has different mechanical and performance requirements. GoXmart works with customers to evaluate suitable display configurations for their applications.
Display dimensions and aspect ratio
Resolution and brightness
Signal interfaces and control options
Touch functionality, where available
Housing and mounting structure
OEM and ODM project support
Share your application, installation dimensions, and technical requirements with our team to discuss a suitable configuration.
Frequently Asked Questions
A 37 inch stretched LCD display can be considered for retail signage, industrial equipment, self-service terminals, and customized commercial information systems, depending on the actual screen dimensions and installation requirements.
Customization options depend on the selected panel and project requirements. Contact GoXmart to discuss dimensions, brightness, interfaces, housing, and installation needs.
GoXmart supports OEM and ODM projects. Please share your application, target specifications, and estimated order quantity for an initial technical evaluation.
Please provide the required display dimensions, resolution, brightness, interface, installation method, application, and estimated quantity. A drawing or reference image is also helpful.
About GoXmart
GoXmart designs and manufactures creative special-shaped digital signage and customized LCD display solutions for commercial applications worldwide.
We specialize in stretched displays, round LCD displays and customized digital signage solutions for retail, transportation, hospitality, healthcare and industrial applications.
