43 Inch Stretched LCD Display for Compact Digital Signage Applications
The GoXmart 43 inch stretched LCD display is a compact ultra-wide display solution designed for applications where installation space is limited but a wide viewing area is required.
Featuring a unique stretched screen format, this bar LCD display is ideal for retail shelf advertising, smart equipment integration, information displays, and customized digital signage projects.
GoXmart provides OEM and ODM customization services, including display dimensions, brightness, touch functions, interfaces, housing design, and mounting solutions to meet different application requirements.
Compact Ultra-Wide Design
The 43 inch stretched LCD display combines a compact form factor with an ultra-wide screen ratio, making it suitable for installations where space is limited but wider content presentation is required.Designed for flexible integration, the 43 inch bar LCD display can be installed in compact environments including shelves, kiosks, equipment enclosures, and customized structures.
Retail shelves

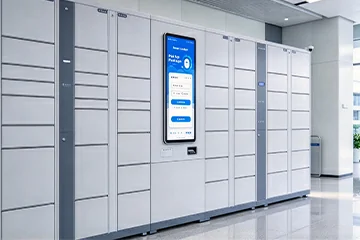

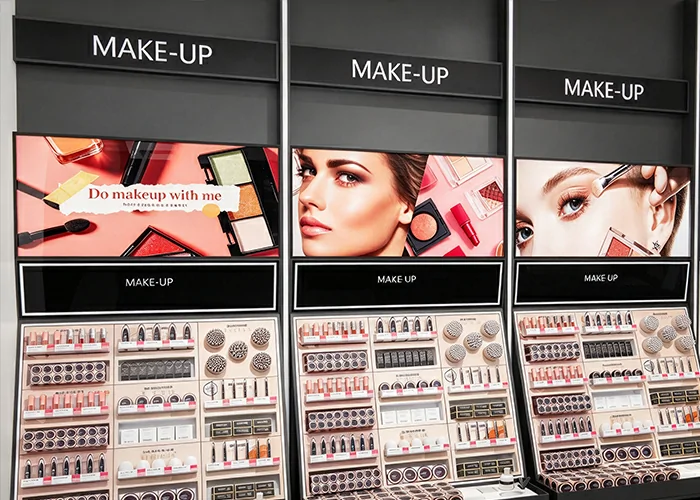

Cabinets

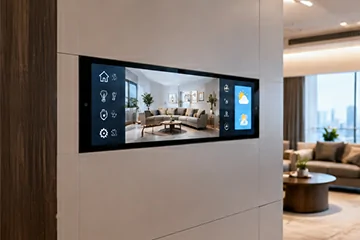

Equipment panels

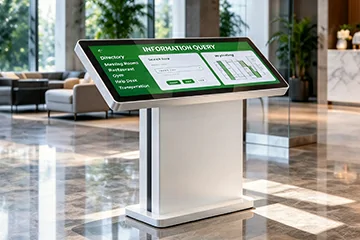

Information terminals
Custom Dimensions & Integration
Every project has different installation requirements. GoXmart supports customization of display dimensions, brightness, interfaces, housing structures, and mounting methods for different applications.
Size customization

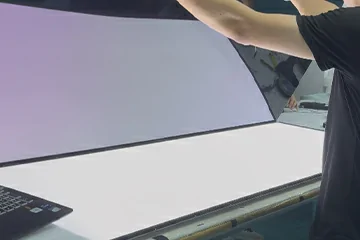

Brightness options

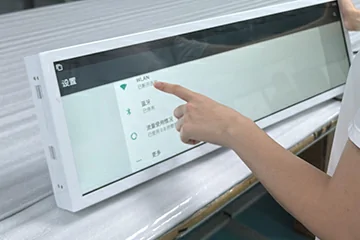

Touch integration
Mechanical design

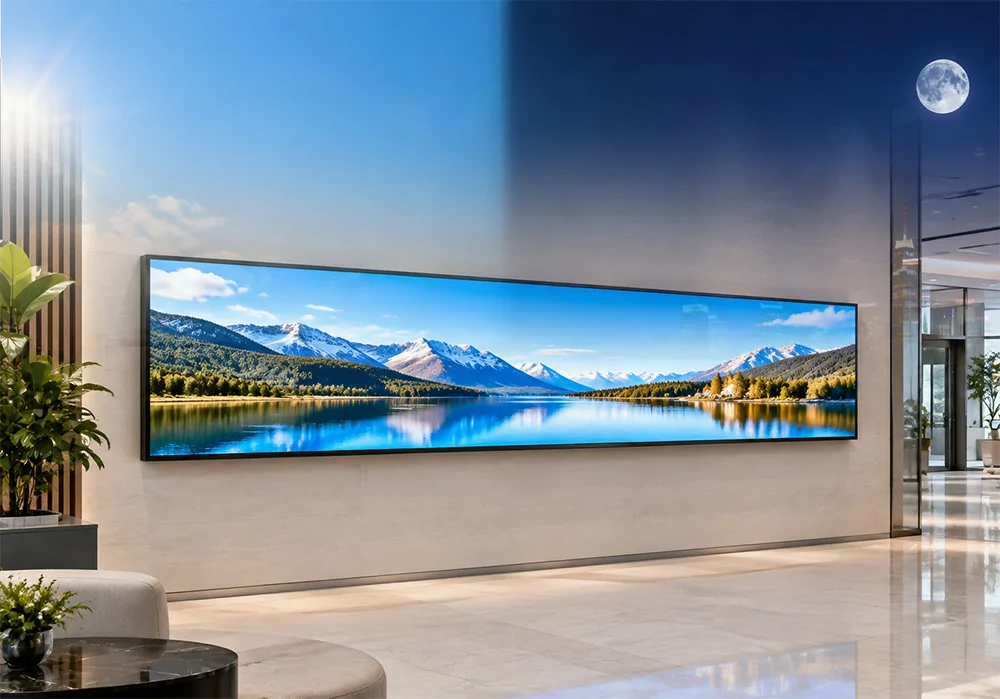

Reliable 24/7 Commercial Operation
Built with commercial-grade LCD components, the 43 inch stretched display supports stable long-term operation for digital signage and industrial applications.
43 Inch Stretched LCD Display Specifications
| 43 Inch Stretched Bar LCD Display | |
| Display area | 1073.78*201mm |
| Resolution | 1920*360 |
| Aspect ratio | 9:4 |
| Support Colors | 16.7M |
| Brightness | 250 nits |
| Response time | < 5ms |
| View Angle | 178/178 |
| Working life | 50000Hrs |
| Working time support | 7*24Hrs |
| Display mode | Horizontal and vertical |
| Speaker | 2*5W (8Ω) |
| Processor | RK3576 (2.2 GHz, octa-core) |
| RAM | 4GB |
| Flash | 32GB |
| Interface | 1*LVDS, support 1920*1080@60Hz; |
| Operating system | Android 14.0 |
| Audio | MP3, WAV, APE, FLAC, OGG, M4A, 3GPP and other formats |
| Video | Support H.265, H.264, VP9, AVS2, AV1 and other video formats |
| Image | Support various image formats such as JPG, BMP, PNG, etc. |
| System comes with application software | APK Installer, Email, Calculator, Browser, Recorder, Calendar, Settings, Clock, Video Player, Search, Contacts, Gallery, Download, Camera, Music, Explorer, etc. |
| Language | Support multiple languages |
| Input | Standard Android keyboard, optional third-party input method |
| System Management | Native Android system, open root permissions, and can be used for product customization and real-time remote monitoring, self-recovery in case of system crash, 24/7 unattended operation Support OTA remote upgrade; support USB flash drive upgrade Support boot animation definition Support server/stand-alone mode switching Support Wi-Fi hotspot |
| Shell | body metal cold-rolled steel plate spraying, edge strip aluminum alloy profile |
| Glass | tempered glass（optional） |
| Color | Black(optional) |
| Product body size | 1112*239*52mm |
| Product weight | 12 KG |
| Package Size | 1220*120*350mm |
| Full package weight | 16 kg |
| Working temperature | -20-55°C |
| Operating humidity | <85% |
| Storage temperature | -20℃～60℃ |
| Operating voltage | AC 100V-260V 50Hz/60Hz |

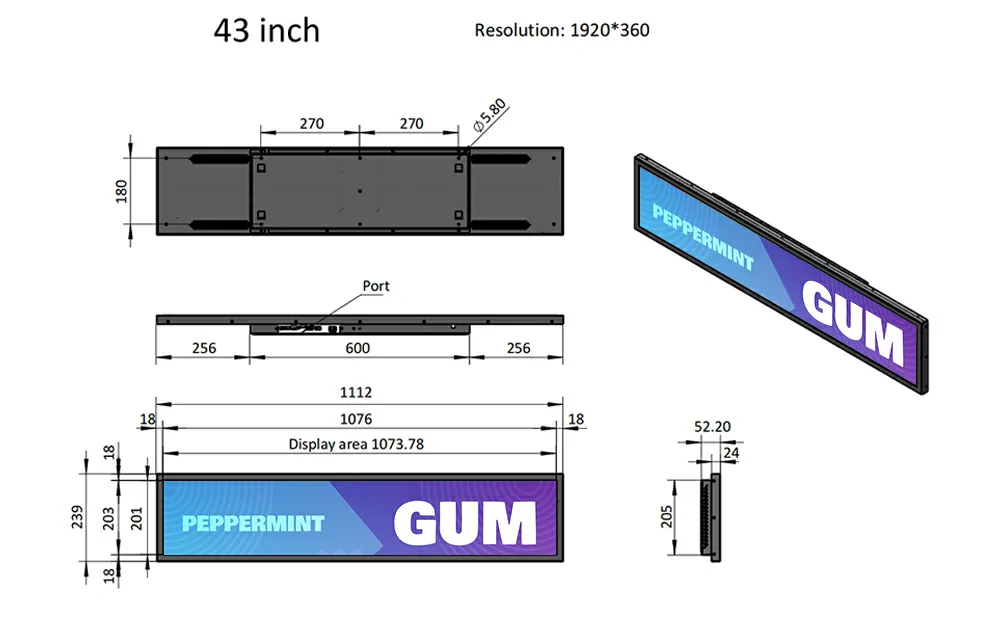

43 Inch Stretched Bar LCD Display Dimension Drawing
43 Inch Stretched LCD Display Applications

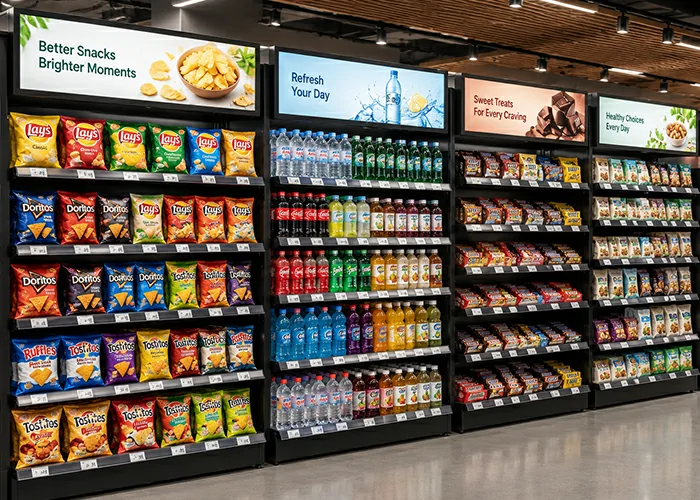

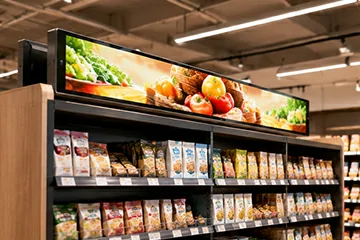

Retail Shelf Advertising Display
The compact stretched display format is ideal for retail shelves, product cabinets, and promotional displays where traditional screens cannot be installed.

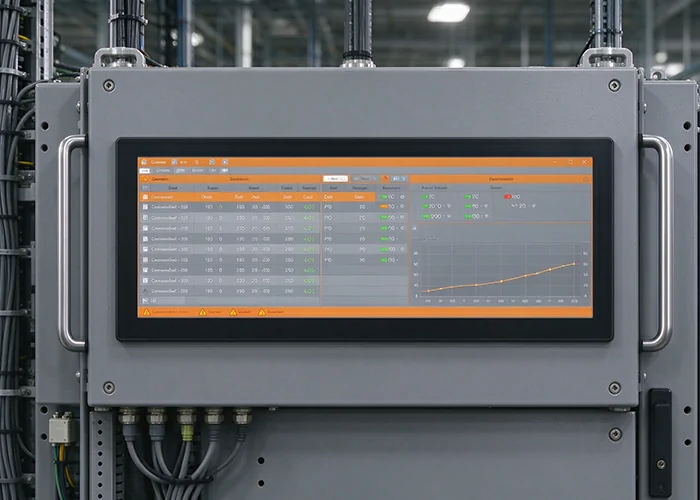

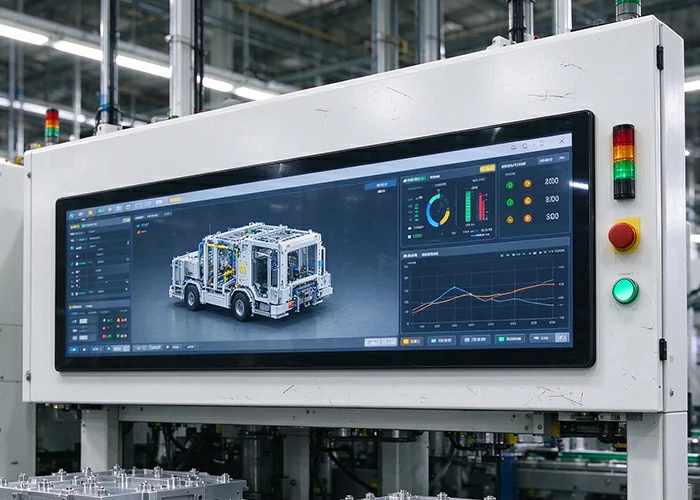

Industrial Equipment Integration
Integrate the 43 inch bar LCD display into industrial equipment, smart machines, and customized systems requiring a unique display format.

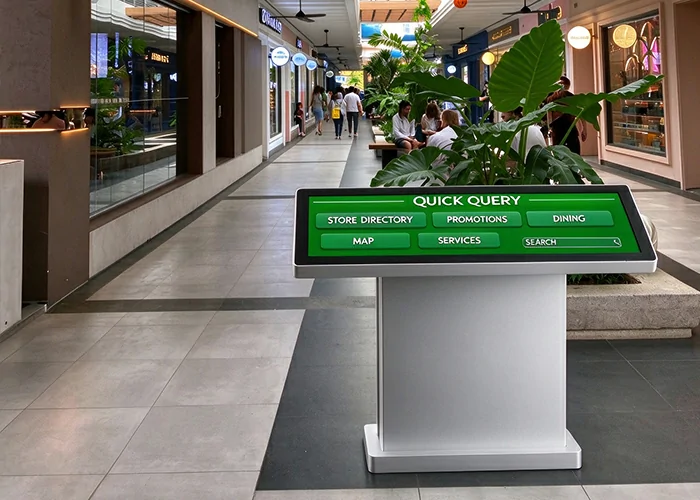

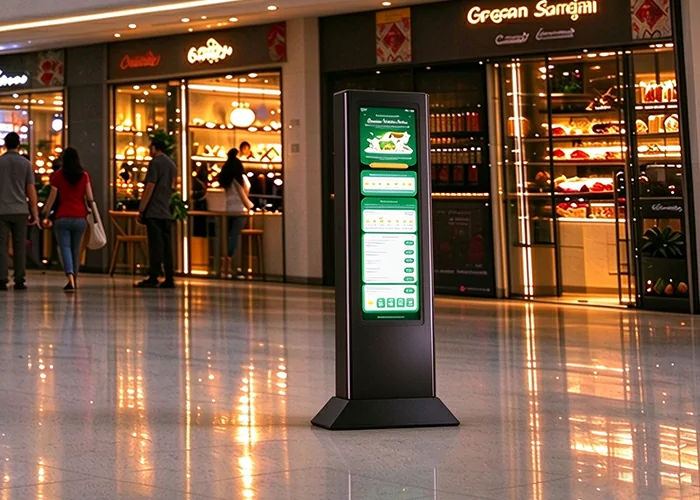

Smart Information Terminals
Provide clear information presentation for kiosks, self-service terminals, and interactive digital systems.

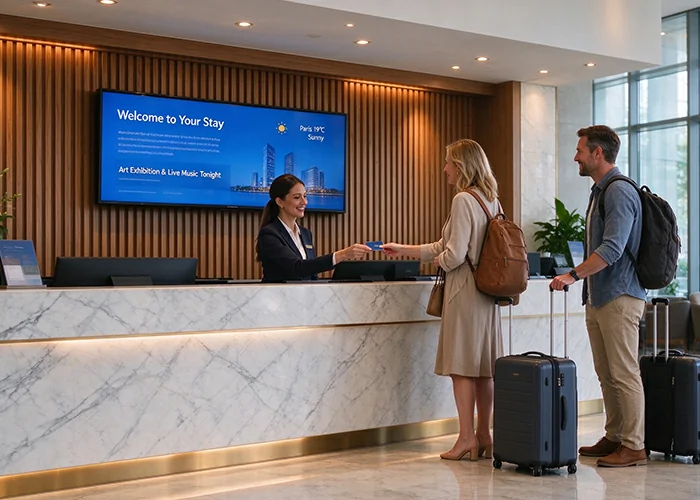

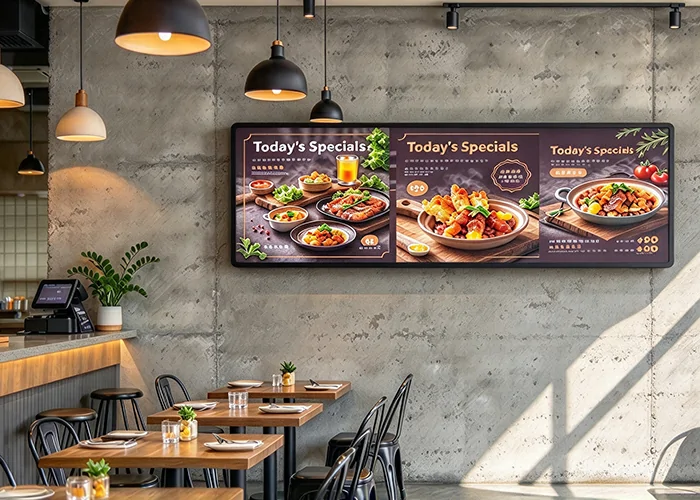

Hospitality & Commercial Spaces
Enhance customer experiences with compact digital signage solutions in hotels, restaurants, and public areas.
Custom 43 Inch Stretched LCD Display Solutions
Different applications require different display configurations. GoXmart helps customers develop customized stretched LCD solutions based on installation space, performance requirements, and project goals.
Display Configuration
- Screen size
- Resolution
- Brightness
Function Options
- Touch screen
- Signal interfaces
- Control systems
Mechanical Design
- Housing structure
- Mounting solutions
- Embedded integration
Why Choose GoXmart for 43 Inch Stretched LCD Displays
Professional LCD Manufacturing
GoXmart specializes in customized LCD displays and digital signage solutions for global commercial applications.
Flexible OEM & ODM Support
From concept design to mass production, we support customized projects with different requirements.
Custom Mechanical Capability
Support customized dimensions, structures, and installation methods for different applications.
Reliable Quality Control
Each display is tested to ensure stable performance for commercial environments.
GoXmart Ultra-Wide Bar Display Production & Custom Line

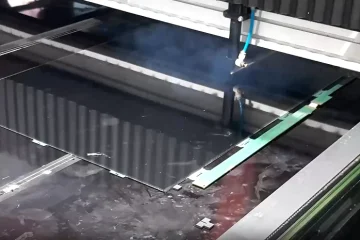

GoXmart’s production line focuses on stretched bar LCD displays. Our workshop handles custom glass cutting, COG/FOG bonding and automatic AOI optical inspection to manufacture high-quality long-strip panels.
We supply custom stretched LCDs with flexible sizes for diverse projects. These screens feature consistent backlight brightness and fine edge treatment. All units pass 100% function test, color tuning and aging testing for stable long-term use.
We accept bulk customization with scalable monthly capacity. Our stretched digital signage solutions are trusted by global customers in retail, hospitality, shopping malls and other industries.
Our Global Certifications
GoXmart complies with international safety and quality norms. Our full range of display products is well-certified for global sales. Key certificates include CE, FCC, RoHS, CCC and ISO 9001, covering safety, electromagnetic compatibility, eco-protection and performance stability.
We carry out thorough lab testing and quality checks on each unit to satisfy local regulations in different countries, providing global clients with safe, reliable and legally compliant display products.
Frequently Asked Questions
- A 43 inch stretched LCD display is designed for digital signage applications where a wide screen format and compact installation are required. It is commonly used for retail shelf advertising, smart equipment displays, information terminals, hospitality applications, and customized commercial display projects.
A 43 inch stretched LCD display features an ultra-wide aspect ratio that provides a wider viewing area while fitting into limited installation spaces. Compared with standard 16:9 monitors, it is more suitable for applications such as retail shelves, equipment panels, cabinets, and customized digital signage structures.
Yes. GoXmart provides OEM and ODM customization services for 43 inch bar LCD displays, including display dimensions, brightness, resolution, touch function, signal interfaces, housing design, and mounting solutions based on specific project requirements.
Yes. The 43 inch stretched LCD display is designed for flexible integration and can be embedded into cabinets, equipment panels, kiosks, and customized structures. GoXmart can provide suitable mechanical designs and mounting solutions according to different installation requirements.
Yes. The 43 inch stretched LCD display uses commercial-grade components designed for stable long-term operation. It is suitable for digital signage environments that require continuous operation, including retail stores, transportation areas, and public information systems.
GoXmart offers optional touch solutions including infrared touch and capacitive touch. Touch functionality can be integrated based on application requirements, providing interactive solutions for kiosks, information terminals, and smart display systems.
43 inch stretched LCD displays are widely used in retail, hospitality, transportation, industrial automation, smart equipment, self-service terminals, and commercial digital signage applications where a compact ultra-wide display solution is required.
Yes. GoXmart supports customized housing structures and mounting solutions, including embedded installation frames, wall mounting structures, protective enclosures, and mechanical integration designs to meet different project requirements.
Yes. GoXmart manufactures various stretched LCD displays, including 37 inch, 43 inch, 58.4 inch, 69 inch, and 75 inch models. Different sizes, aspect ratios, brightness levels, and functions can be customized for specific digital signage and industrial applications.
